 Throttle Body Strip Down + Rebuild. 56k Beware.
Author Message
 Post subject: Throttle Body Strip Down + Rebuild. 56k Beware.
PostPosted: Sun Jan 07, 2007 1:38 pm
RT BiKiloPoster

User avatar

Joined:
Sat Jul 30, 2005 5:30 pm
Posts:
2347
Location:
North Devon
Hi,

Hopefully this is some help to you all.
I completely stripped my throttle body down and then took pics on the rebuild.

Firstly, Pay attention to which way the butterfly opens in the throttlebody and also which way to head of the screw faces.

This is the rear of the throttle body, the side which bolts up to the inlet manifold.


Here is the throttle body before the strip down.
As you look at it, The top half of the butterfly should pivot towards you.
This is very important that you remember which way it pivots.

Now turn the TB on the side where the throttle cable locates.
Now remove the 13mm nut and washer with the 2 prongs on from the threaded rod.


You are left with this:

Some of these parts maybe a little stiff to remove, So a gentle tap will help.
I used a small plastic tool I work with.

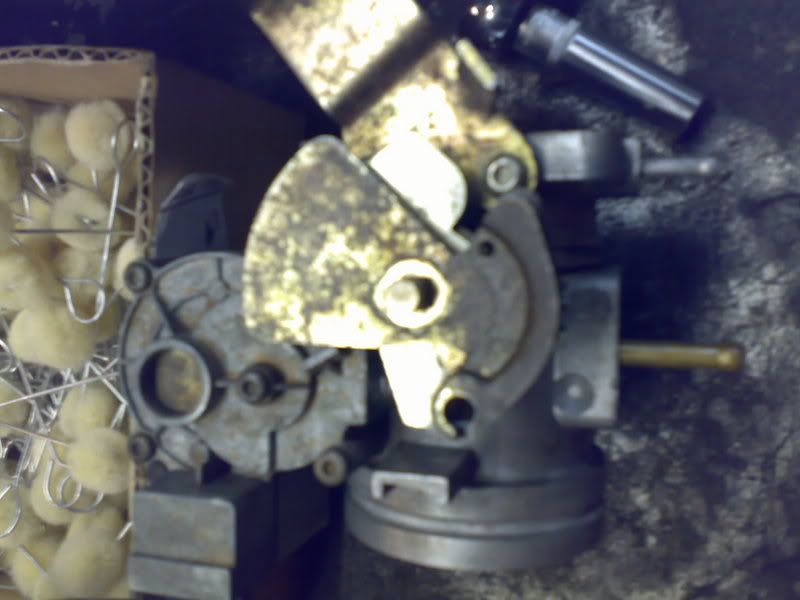

Remove the upper part where the throttle cable locates into.

You are left with this:

Remove the washer.


PAY ATTENTION TO WHERE THE WHITE COTTON BUD IS POINTING TO:

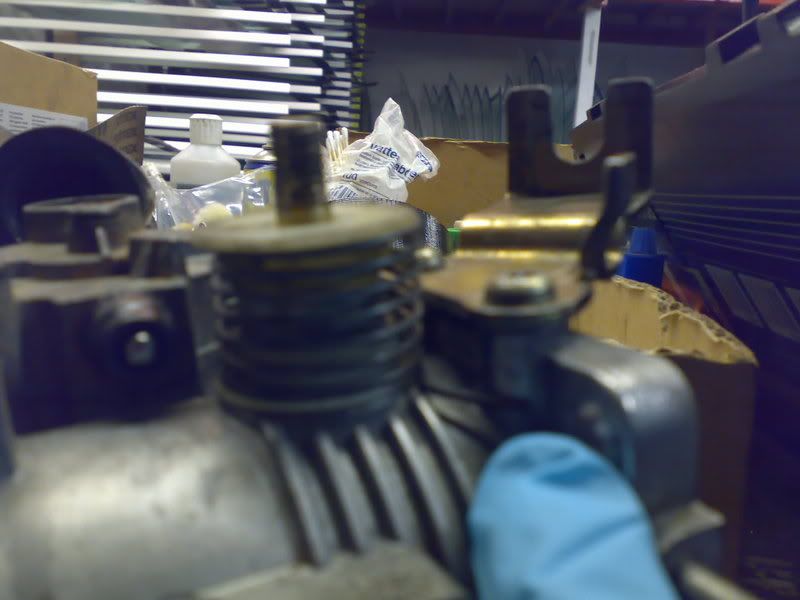

You can make out where the springed coil is sitting. Now look at the previous 2 pics and take note of how it is sitting here also.

Remove the upper piece of metal, A gentle tap will suffice.
Once removed, the coil loses some tension and extends.


Remove the upper white half of the plastic and take note of where the 2 prongs on the coil locate. Look where the blue finger is pointing. (I'm a smurf btw)
Remove spring.


Notice the white plastic sleeve?


Remove and store with the upper half and spring.


Lower part of plastic on the right hand side, the spring is also placed down how it would sit on the TB and upper half of the plastic on the left - This is upside down by the way :mrgreen:


THIS IS ONE SIDE OF THE THROTTLE BODY STRIPPED.

I had a cup of tea at this point and a Mars bar!


Turn the TB over.
Sorry for the poor quality of this pic.

You have a long metal tab with 2 prongs either end, bent up over the 7mm bolts. I can only guess that these are to stop the bolts working loose?


Bend back these tabs and remove the bolts.
**KEEP YOUR EYES OUT FOR ANY SMALL NUTS FALLING**
I'll show you what I mean in a minute.

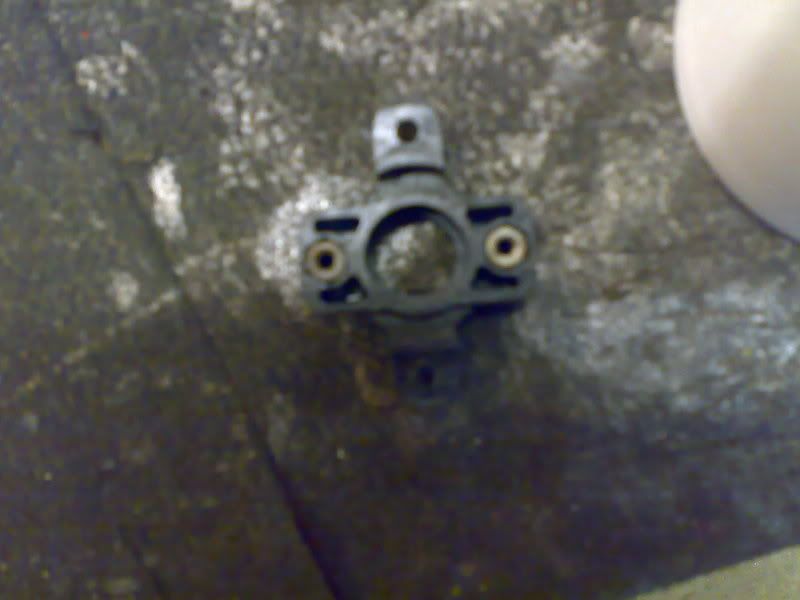

Once the bolts are undone, remove the upper black switch and store away.

You are left with this:


Undo the 2 torx screws - T25 or T20.
And remove the 2nd black cover.

When I said watch out for falling nuts, what happens is when the bolts are removed the nuts that secure these bolts fall out from the bottom of the lower 2nd black cover.


You can glue them back into place or use a bit of skill later in locating them, but the glue is the easier option.

This is the nut fitted back securely.
Only one came out which is wierd?


**WORTH NOTING, THE ROD ON THIS SIDE HAS A "D" SECTION TO IT, SO EVERYTHING WILL ONLY FIT ONE WAY**

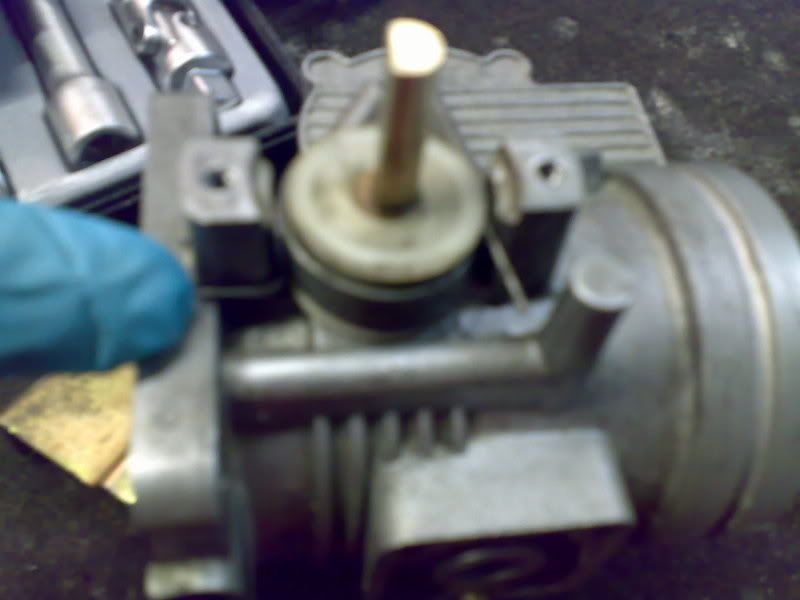

You are now left with this.
Remove the upper metal section. But at the same time, it may be fiddly due to the way how the springed coil sits inside a groove in it. Can you see it?

Also, note how the coil locates.


You are left with this:

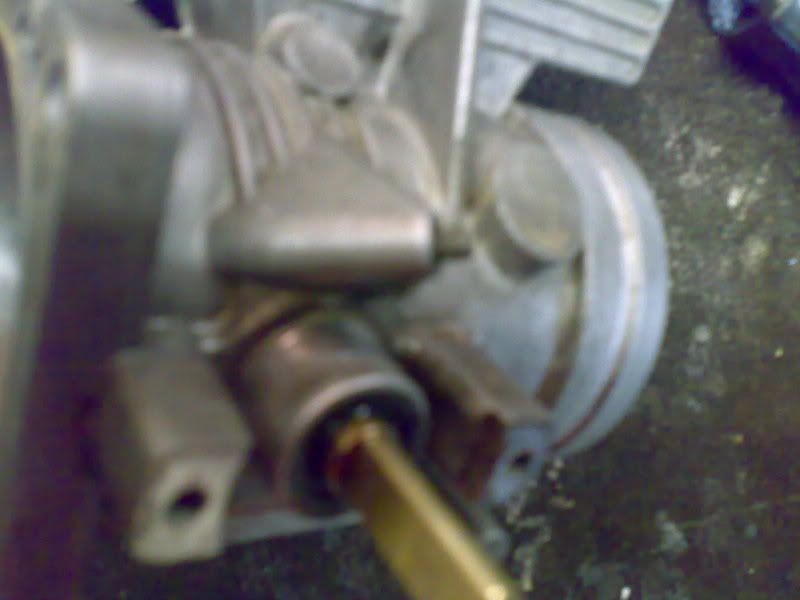

Can you see the "D" section to the rod?


Now lift off the coil with the white plastic insert.



This is the 2nd side fully stripped.

Look at the butterfly. See the 2 flat bladed screws? Undo them.

The head of the screws must be at the rear of the butterfly/inlet manifold side.




Once the screws are removed, (Not like in this pic BTW), turn the butterfly to the open position and press or tap the round disc out.


Once the disc is removed, the rod will push out easy enough - if not, a gentle tap will help.



At this stage, I also removed the idle bleed screw (Term correct?)

Seen here just above the bar:


Or here just above the bar:


Apparently it's a beyatch to set-up and get the idle perfect? But I just noted how much thread was showing and refitted it to the same, if not slightly out position.

I then soaked pretty much in a degreasant/cleaner and got it looking shiny.
I paid particular attention to where the idle screw sits and its threads.
Also the 2 take offs to the actuator and DV.

I cleaned inside the TB and paid attention to any raised spots etc.

I also cleaned up the 2 springed coils, I think I should of put some grease on them? I only used wd40. But this can be addressed at a later date.

I wd40'd the butterfly too.





One thing I will say, is when you are refitting the butterfly disc back into the rod section - Take a little time to get it sitting perfect with no gaps.

Rebuilding is exactly the opposite of this.

The way I done mine was by stripping it down, then completely forgetting where everything goes :roll: Then stripping each half of my other throttle body down. So I know this is correct :mrgreen:

HTH

Chaz

_________________
Rover 221 Turbo Coupe


Offline
  Profile

 Post subject:
PostPosted: Sun Jan 07, 2007 1:39 pm
RT BiKiloPoster

User avatar

Joined:
Sun Aug 17, 2003 4:50 am
Posts:
2988
Location:
cheltenham, glos
Nice one chaz.

Now go and do it all again with MACRO mode on the cam :P

_________________


Offline
  Profile Feedback

 Post subject:
PostPosted: Sun Jan 07, 2007 1:46 pm
RT BiKiloPoster

User avatar

Joined:
Sat Jul 30, 2005 5:30 pm
Posts:
2347
Location:
North Devon
Haha!! I was using my 2 day old N73 with oily hands.

It's still grubby now :(

_________________
Rover 221 Turbo Coupe


Offline
  Profile

 Post subject:
PostPosted: Sun Jan 07, 2007 1:47 pm
RT GOD

User avatar

Joined:
Mon Dec 27, 2004 11:17 pm
Posts:
7703
Location:
At the bridge, with Horatius.
The camera seems to backfocus quite a bit.. :roll:

_________________

Stella now gone, Ruby is my baby now.
For your photography needs, try
http://www.freelancephotographic.net


Offline
  Profile Feedback

 Post subject:
PostPosted: Sun Jan 07, 2007 1:51 pm
RT BiKiloPoster

User avatar

Joined:
Sat Jul 30, 2005 5:30 pm
Posts:
2347
Location:
North Devon
Well.. I'm not a cameraman :wink:

I was more concerned about trying to take pics, get my car running perfect and also doing a guide for other people.

_________________
Rover 221 Turbo Coupe


Offline
  Profile

 Post subject:
PostPosted: Sun Jan 07, 2007 3:00 pm
Rovertech Kiloposter


Joined:
Sun Jun 20, 2004 2:38 pm
Posts:
1602
Pleased to hear you got it sorted mate :D

Good detailed guide too with lots of helpful pics... im sure it will be very useful to many as it seems to be quite a common problem.


Offline
  Profile

 Post subject:
PostPosted: Sun Jan 07, 2007 3:26 pm
Rovertech Kiloposter


Joined:
Sat Mar 18, 2006 11:03 pm
Posts:
1059
Location:
Prestatyn North Wales
Good post ...
had nowt that i could fix on mine ...just took it all apart cleaned and re-oiled .
hence i didn't take any pics ...as there wasn't anything to fix really...play in the butterfly mounts ...would be the only thing i could sort out ...but it had non that was noticeable.

taking pics ...

not having a go at you ...just some tips.


when i first took close ups they were like some of yours ....my camera was too near to the subject


you can get them better ...if you never hold the camera closer than a foot to 18 inches ...put it in macro mode and zoom in ..from a foot 18 inches away
or take a very high res pic further back and crop in adobe.


you'll soon get good at it ...
i sometimes take about 10 pics for every one i use ....one with flash one without ...one in macro one out of macro ... flash in macro ..macro without flash .etc.


part of the problem ...is that the tiny LCD displays on the back of the camera...you cant tell if its in focus ...
my next cam will be an SLR digital ...you can look thru the lens on these and focus ...and see the actual pic your taking.


All the best...mark


Offline
  Profile

 Post subject:
PostPosted: Sun Jan 07, 2007 3:56 pm
RT GOD

User avatar

Joined:
Fri Apr 30, 2004 3:22 pm
Posts:
5033
Location:
Byers' Folly, Surrey
One point that I'll just add, if I may.

When I took the brass shaft that holds the butterfly disk out of mine, it has a sharp edge where the cut-out section is.

I spent just a couple of minutes smoothing this and since then, have never had any any sticking problems with this throttle body. :D


Offline
  Profile Feedback

 Post subject:
PostPosted: Sun Jan 07, 2007 6:43 pm
RT GOD


Joined:
Mon Oct 18, 2004 9:53 am
Posts:
4066
Location:
Basildon, Essex
I think this should be a sticky. :)


Offline
  Profile Feedback

 Post subject:
PostPosted: Sun Jan 07, 2007 7:39 pm
Rovertech Veteran


Joined:
Wed Feb 08, 2006 9:33 pm
Posts:
609
Location:
Plymouth

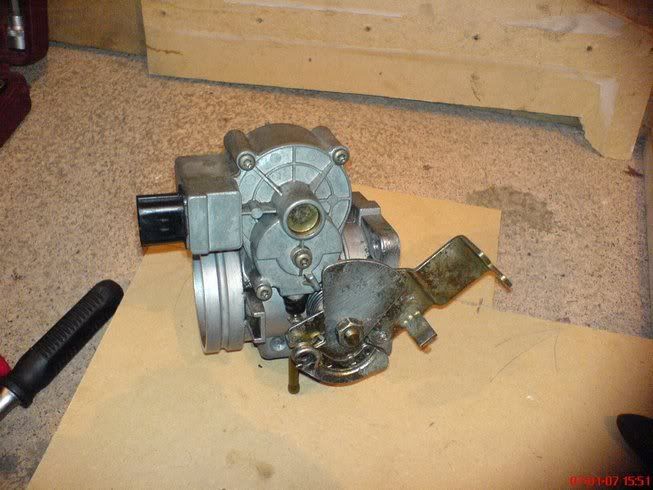

Nice one chaz mate, I did mine today aswell and also took a load of photo's of every step, something like 40 photos i ended up taking i think.
End result is good though so im pleased with it.


One of it stripped down


Then after a load of cleaning, loads more photo's and rebuilding here is a couple of the end result



_________________


Last edited by Jase 220 on Sun Jan 07, 2007 9:47 pm, edited 1 time in total.

Offline
  Profile

 Post subject:
PostPosted: Sun Jan 07, 2007 7:50 pm
RT BiKiloPoster

User avatar

Joined:
Sat Jul 30, 2005 5:30 pm
Posts:
2347
Location:
North Devon
I knew you came down to work with an ulterior motive :twisted:

_________________
Rover 221 Turbo Coupe


Offline
  Profile

 Post subject:
PostPosted: Sun Jan 07, 2007 7:54 pm
Rovertech Veteran


Joined:
Wed Feb 08, 2006 9:33 pm
Posts:
609
Location:
Plymouth
Well didnt plan to do it so soon but seeing you making a start on stripping your throttle body yesterday gave me the incentive to do mine today.

Besides was too wet to fit de-cat today :( and this i could do in the dry :)

_________________


Offline
  Profile

 Post subject:
PostPosted: Sun Jan 07, 2007 10:37 pm
Rovertech Kiloposter


Joined:
Fri Jun 13, 2003 10:36 pm
Posts:
1152
Location:
Reading
Quality post mate, defo needs to be a sticky.

Also did mine today. Was FILTHY! !

Think thats sorted my idle and stalling problems as everything was clogged up.

_________________
Coupe Turbo
BRG
Cream Leather
My Feedback


Offline
  Profile Feedback

 Post subject:
PostPosted: Mon Jan 08, 2007 1:00 am
RT BiKiloPoster

User avatar

Joined:
Sat Jul 30, 2005 5:30 pm
Posts:
2347
Location:
North Devon
kash wrote:
Quality post mate, defo needs to be a sticky.

Also did mine today. Was FILTHY! !

Think thats sorted my idle and stalling problems as everything was clogged up.


Hi

Glad to hear it :)

Did you follow the guide? If so, was any of it unclear or did I miss anything out?
Any suggestions on making it better?

Cheers

Chaz

_________________
Rover 221 Turbo Coupe


Offline
  Profile

 Post subject:
PostPosted: Mon Jan 08, 2007 4:47 pm
Rovertech Kiloposter


Joined:
Fri Jun 13, 2003 10:36 pm
Posts:
1152
Location:
Reading
chazjenkins wrote:
kash wrote:
Quality post mate, defo needs to be a sticky.

Also did mine today. Was FILTHY! !

Think thats sorted my idle and stalling problems as everything was clogged up.


Hi

Glad to hear it :)

Did you follow the guide? If so, was any of it unclear or did I miss anything out?
Any suggestions on making it better?

Cheers

Chaz


Sure did! Was browsing on here just before i started so that was a spot of luck. No mate, i though it was spot on, nice and precise.

Though one questins, are the cottons buds standard on the coupe? I couldn't seem to locate them :P

_________________
Coupe Turbo
BRG
Cream Leather
My Feedback


Offline
  Profile Feedback

 Post subject:
PostPosted: Mon Jan 08, 2007 5:15 pm
Rovertech Moderator

User avatar
Rovertech Moderator
Gold Trader

Joined:
Thu Feb 20, 2003 12:23 am
Posts:
20441
Location:
Somersetshire
Moved to FAQ.
Thanks all!

_________________
Grant620
T16 Big Valve kits - Exclusive to us!
GBE / Cookie Downpipe Group Buy


Offline
  Profile Feedback

 Post subject: Re: Throttle Body Strip Down + Rebuild. 56k Beware.
PostPosted: Tue Oct 28, 2008 10:55 pm
Rovertech User Admin

Rovertech User Admin
Rovertech Moderator

Joined:
Tue Jan 11, 2005 3:09 pm
Posts:
12941
Cleaned mine today... I think it was in need of it!



Those are 'before' pictures, obviously.

Not as clean as some on the outside, but clean where it counts ;)

_________________
Can't post in the Classifieds forum? Take a look at this


Offline
